Engsel Hettich Sensys 8646i Soft-Close Clip-On Full Bengkok (9094290)
| SKU | : | 070901007581 |
| Merek | : | Hettich |
| Kategori | : | Hardware - Fitting Furniture |
| Satuan | : | Pieces |
| Minimal Pembelian | : | 1 Pieces |
* Hubungi kami untuk mendapatkan harga terbaik.
Deskripsi Produk
Technical details
--------------------------------
Sensys thin door hinge, door thickness from 10 mm
With integrated Silent System, with self closing feature (Sensys 8646i)
Quality classification under EN 15570, Level 3
Opening angle 110°
For door thickness 10-19 mm
Door mounting option inset (B -4 mm)

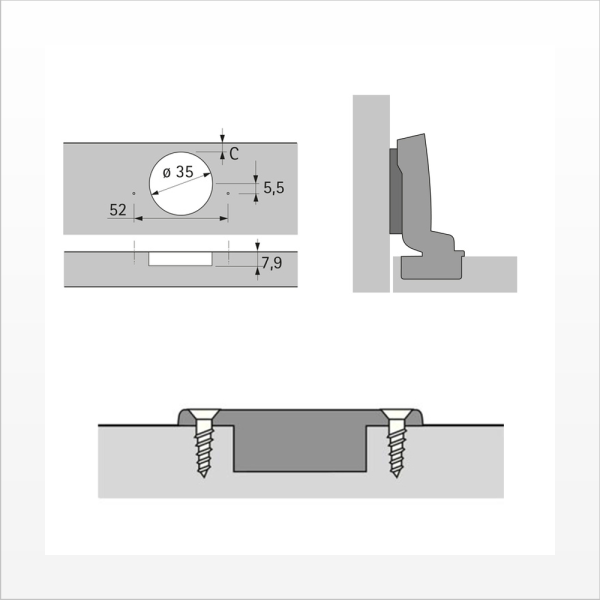

TH - drilling pattern 52 x 5.5 mm
Cup depth 7.8 mm
Installation for screwing on (TH 52)
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
steel nickel plated
--------------------------------
Sensys thin door hinge, door thickness from 10 mm
With integrated Silent System, with self closing feature (Sensys 8646i)
Quality classification under EN 15570, Level 3
Opening angle 110°
For door thickness 10-19 mm
Door mounting option inset (B -4 mm)
TH - drilling pattern 52 x 5.5 mm
Cup depth 7.8 mm
Installation for screwing on (TH 52)
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
steel nickel plated
