Technical details
--------------------------------
Sensys thin door hinge, door thickness from 10 mm
With integrated Silent System, with self closing feature (Sensys 8646i)
Opening angle 110"
For door thickness 10-19 mm
Door mounting option overlay (B 12.5 mm)

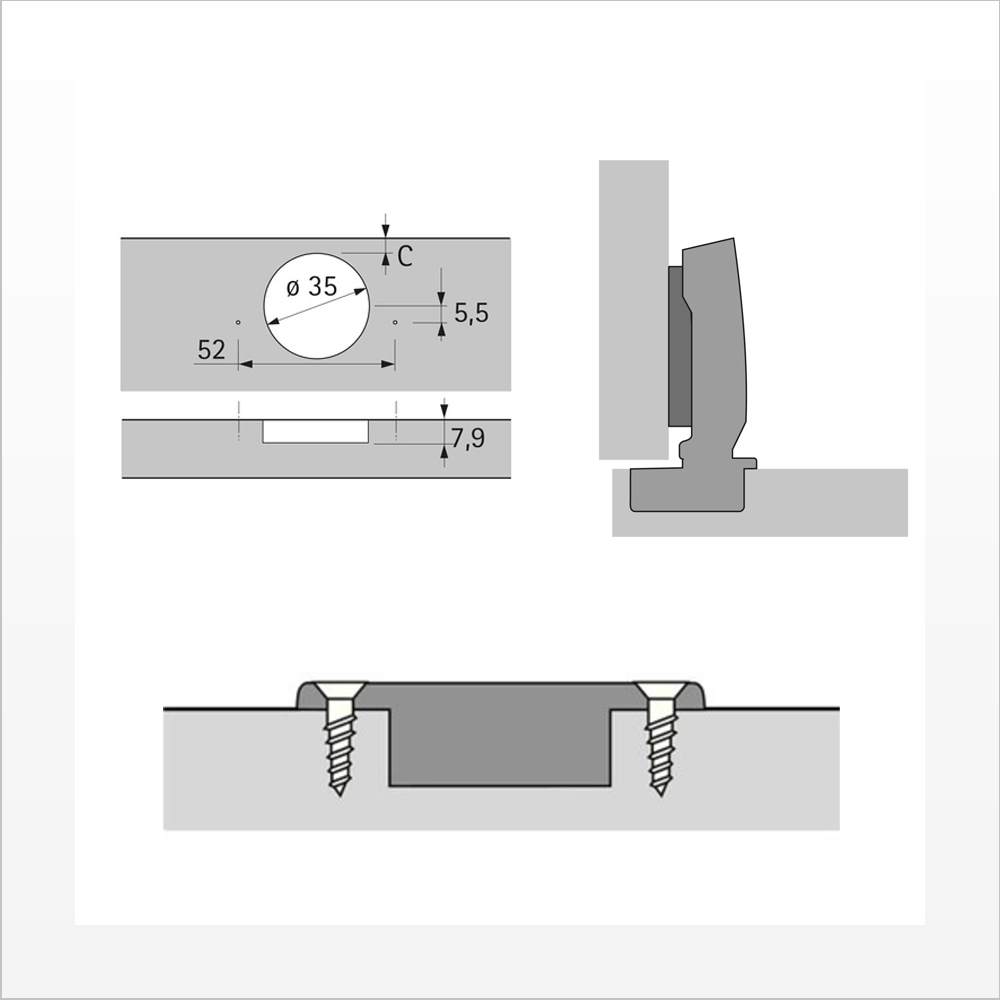

TH - drilling pattern 52 x 5.5 mm
Cup depth 7.8 mm
Installation for screwing on (TH 52)
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Steel nickel plated
